Accessories and Parts for the Bosch Universal "Classic" Mixer and Attachments
"Classic" Bosch Universal |
Bosch Universal Plus |
Above: Bosch Universal "Classic" mixer (Parts are below on this page) |
Bosch Universal Plus mixer for parts for the model above . |
(For Bosch Compact-model mixer parts )
(Very long page, please scroll down.)
Click link below to go to parts section for these Bosch Universal Mixer attachments:
- Standard Bowl & Bowl Parts
- Original Stainless Bowl (ER1)
- Stainless Steel Bowl Parts ("SB4")
- Miscellaneous Parts
- Food Processor Attachment Parts
- Blender & Blender Parts
- High Speed Drive
- Food & Meat Grinder Attachment and Parts
- Food & Meat Grinder Stainless Sausage Stuffer Set
- Food & Meat Grinder Grater Attachment
- Food & Meat Grinder Pastry Press Attachment
- Food & Meat Grinder Pasta Attachment
- Food & Meat Grinder Berry Press Attachment and Parts
- Flaker Attachment Parts
IMPORTANT ABOUT BOSCH UNIVERSAL MODELS:
Before ordering anything from this page, please be sure you're ordering for the model of mixer that you own. (Check photos at top of page.) Parts on this page are for the Bosch Universal "Classic" mixer. (If you have the newer "Universal Plus” model of Bosch mixer, you need to instead.) Parts for these two mixer lines look very similar, but many arenot interchangeable. Read the next paragraph about two different types of Classic-model mixer bowls and their parts.
IMPORTANT ABOUT CLASSIC-MODEL BOWLS:
During the years that the Classic style of Bosch Universal mixer was sold, two types of bowls were made: an older, “tabs outside” style, and a newer, “tabs inside” style. To identify which bowl you have, look at the tabs at the top of the bowl (the tabs that the splash ring locks onto). If those tabs areoutsidethe lip of the bowl, you have the older style bowl. If the tabs areinsidethe lip of the bowl, you have the newer style bowl. Read the next paragraph about parts availability for these two bowl types.
Parts areno longer available老(标签)外博世普遍风格mixer bowl. If you want to replace old style bowl parts, you will need to update to the newer style of bowl by ordering a newer style bowl shell, and also a new spur gear, splash ring, and lid. The dough hook from your old style bowl WILL fit the new bowl, so if your old dough hook is okay, you don't have to replace it. Your old drive shaft, old whips, and old whip-drive also will work with the new bowl.
复合基te accessories:
If you want complete accessories for your older Bosch Universal mixer (MUM6622 or MUM6610 or UM3), some are still available:
Universal Mixer Standard Bowl & Bowl Parts
Important: Before ordering any individual replacement parts for the Universal bowl, be sure to read the"Bosch Bowl Parts Preface" at top of page.
Univ. Bowl with Spur Gear Only:Click for product.
Bowl Shell with Spur Gear only (Item 11-UNBA1): Please read the Bowl Assembly Note below, first. We recommend buying these parts together rather than trying to separate your old spur gear from your old bowl to re-use either one. Assembly is required.
Also... most old spur gears have slots that facilitate removal of the drive shaft. (In the photo, the slots are the "elongated" parts of the small hole at the top of the center column). But if your old spur gear is different from the one shown here, having NO slots for the drive shaft cross pin to slide through for removal, then you have three options regarding the drive shaft assembly. Option #1 is that you can order a whole new drive shaft assembly below on this page. Option #2 is that you can remove the small cross-pin at the very top of the shaft with the proper size of punch (not real easy to do unless you have a well-equipped shop) and replace it with a new cross pin (also available below.) Option #3 is to demolish the old spur gear with a large hammer (and maybe chisel),taking eye-protection precautionsand being careful not to damage the drive shaft in the process. By demolishing the spur gear in this way, you can then remove the drive shaft for re-use. No matter which approach you take, be sure tools are used on your machine only by persons who are qualified to use them safely.
Bowl Assembly Note: To disassemble the spur gear (see image above) from the bowl shell requires removal of screws at the top/inside of the bowl column. Over the years Bosch has used more than one type of screw head in this spot. We have no way to know which type of screws your bowl might have, and to remove them you will need a screwdriver with extra long shaft and the proper sort of tip. Removal can be further complicated by corrosion of screw heads and threads from long-term exposure to moisture. For these reasons, we highly recommend buying #UNBA1 (above) if you want bowl shell and spur gear pre-assembled and ready for attachment of the shaft drive assembly.
1. Bowl Cover for Universal/U-Plus:Click for product.
2. Splash Ring for Universal:Click for product.
3. Spur Gear for Universal:Click for product.
Item labeled 3 in image: Before ordering the Spur Gear or the Bowl Shell Only, please read the note titled "Bowl Assembly Note", just above.
4. Screws for Univ. Bowl, Pkg of 6:Click for product.
5. Univ. Bowl Shell:Click for product.
Item labeled 5 in image: Before ordering the Bowl Shell Only or the Spur Gear, please read the note titled "Bowl Assembly Note", just above.
Drive Shaft Assembly for Universal Classic:Click for product.
Cross Pin for Universal Classic:Click for product.
Universal Mixer Original Stainless Bowl (ER1)
ER1 bowl complete:Click for product.
这个原始样式不锈钢碗(模型μZ6ER1) uses a special dough hook that drives from the bottom of the bowl. This bowl comes with its own dough hook, which does an outstanding job of kneading. The bottom-drive design provides a little extra dough capacity because there is no center column as in the standard bowl. Capacity is 6.5 quarts (approx. 15 lbs. of dough). This stainless bowl also includes splash ring and center cover. The bowl fits on the Bosch Universal Mixer's low speed drive (the same place the standard plastic bowl mounts.) Whips, whisks and cookie paddles cannot be used with this bowl because it's built without the center drive column. The bottom drive shaft pops out of its socket with a smack from the palm of your hand, for easy cleaning. Putting a drop of vegetable oil on the O-rings after washing will make them last a long time.
Note: To use this bowl on theUniversal Plus, you'll need to use some small rubber bumpers to prevent wobble ( .)
Universal Mixer Original Stainless Bowl (ER1)
Above: ER1 bowl parts
Tip: The Drive Pin (item #9) can be removed from this bowl by simply pushing or tapping from inside the bowl. It should be removed and washed after each use. Allow it to dry and lubricate it with a drop or two of vegetable oil before reinstalling.
1. Bowl Cover for Universal/U-Plus:Click for product.
This cover fits recent-production bowls which have retaining pins on inside of the metal bowl-top. Bowl cover is no longer available for older model having retaining pins on the outside of the metal bowl-top.
2. Splash Ring for Universal:Click for product.
This splash ring fits recent-production bowls having retaining pins on inside of the metal bowl-top. Splash ring is no longer available for older model having retaining pins on the outside of the metal bowl-top.
3. Dough Hook for Original-Style Stainless Bowl:Click for product.
The complete bowl with hook can still be purchasedhere.
4. Bushing for Orig. Stainless Bowl:Click for product.
The bowl's drive pin (item #9 below) turns inside this bushing. After extended use the bushing can become worn and contribute to leakage. If you need to replace this bushing, Bosch recommends also replacing the upper gasket (item #5 below) and the lower gasket (item #8 below) at the same time. If you replace your bushing and if your old nut (item #7 below) is made of stainless steel, you will need to purchase item #7 (the nut) because your old stainless nut will not work with the current-production replacement bushing.
5. Upper Gasket (4) Orig. Stainless Bowl:Click for product.
This item is a pkg. of 4 of these gaskets. Reassemble tightly to prevent leakage. If you need to replace the bowl’s bushing (item #4 above) after years of use, replacement of this gasket is important even if the existing gasket doesn’t look bad, because hardening of the gasket over time will make leakage likely after reassembly.
6. Bowl shell: (Discontinued by Bosch)
7. Nut for Orig. Stainless Bowl:Click for product.
8. Lower Gask (3), Orig. Stainless Bowl:Click for product.
This item is a pkg. of 3 of these gaskets. If this gasket becomes excessively worn, the bowl will leak. Bosch recommends frequent replacement of this gasket, but keeping the gasket lubricated with a drop of vegetable oil will dramatically extend its life. Failure of this gasket is the most common cause of leakage for this bowl. However, wear to two other parts, the bowl’s Bushing (item #4 above) and the Upper Gasket (item #5 above) can also cause leakage, so those parts may also need to be replaced if your bowl leaks.
9. Drive Pin, Orig. Stainless Bowl:Click for product.
In almost all instances when this Drive Pin needs to be replaced due to wear, to prevent leakage items #4, #5 and #8 also must be replaced at the same time. (Also note the availability of the parts combo set listed just below.)
Parts combo set:Click for product.
The parts combo set includes items 4, 7 & 9 in image, plus upper and lower gaskets (one of each.)
Universal Mixer Stainless Steel Bowl Parts ("SB4")
与非锁定SB4碗山符合Bosch Universal and Bosch Classic mixers is discontinued. Some parts for the SB4 bowl are available below.
The Stainless Steel Bowl (MUZ6SB4) for the Bosch Universal mixer has a polypropylene center drive shaft column, enabling the Universal's standard wire whisks and BreadMaster dough hook (as well as the accessory cookie paddles) to be used in it. Capacity is 5.5 quarts (approx. 12.5 lbs. of dough.) This bowl is sold without dough hook, whip drive or whisks, and those pieces from the Universal mixer's standard plastic bowl (new or older models) fit onto this bowl. This bowl fits on the Universal mixer's low speed drive (the same place the standard plastic bowl mounts.) The drive shaft detaches in seconds from below for quick, easy cleanup.
1. Drive Shaft Assembly for SB4 Bowl: (Discontinued by Bosch)
2. Center Column for SB4 Bowl: (Discontinued by Bosch)
3. Gasket for SB4 Bowl:Click for product.
4. Undercarriage for SB4 Bowl: (Discontinued by Bosch)
5. Splash Ring:Click for product.
Universal Mixer Miscellaneous Parts
Dough Hook for Universal:Click for product.
This dough hook for the Universal mixer makes magnificently developed bread dough.
Dough Hook Extender for Bosch Universal:Click for product.
The new Dough Hook Extender accessory for the Bosch Universal mixer is placed under the dough hook and fits snugly against it. The extender sweeps the center column, allowing as little as one to two loaves of bread to be perfectly kneaded. It fits the Universal Plus and also fits older models of the Bosch Universal mixer.
Bowl Scraper for Bosch Universal:Click for product.
This new L'Equip accessory automates bowl scraping by operating continuously while the mixer runs. It snaps easily over the top of the whip drive piece (it works with either the metal or the plastic whip drive.) It can be used in conjunction with the cookie paddles, the wire whips, or the batter whisks. One arm scrapes the bowl shaft, the other scrapes the bowl side. Comes with two sets of scraper blades. FDA compliant (food safe) & BPA free. The Bowl Scraper works with the newer Universal Plus mixer as well as the older Bosch "Classic" mixer from earlier years. Full one year warranty from L'Equip.
Univ. Plastic Bowl Drive Shaft Assembly1:Click for product.
- Cross Pin for Univ. Drive Shaft:Click for product.
- Drive Shaft Only, Univ. Plastic Bowl2: (Discontinued by Bosch)
- Bushing only: (Discontinued by Bosch)
Circlips for Univ. Shaft, Pkg of 2:Click for product.
Washers for Univ. Shaft, Pkg of 4:Click for product.
Screws for Univ. Bowl, Pkg of 6:Click for product.
1. Universal Plastic Bowl Drive Shaft Assembly: This is theentire assemblypictured. It arrives assembled & attaches easily to your bowl with four screws. (Re-use your old screws or order new ones.)
2. Drive Shaft Only, Univ. Plastic Bowl: This is NOT the entire assembly pictured, it is only the straight shaft part.
- Metal Whip Drive for Universal/U-Plus:Click for product.
- Repl. Wire Whips, Pair (Univ./Concept):Click for product.
- Batter Whisks, Pair (Univ./Concept):Click for product.
Note: Bosch recommends using the new Cookie Paddle accessory (further down on this page) for mixing non-pourable batters. The Wire Whips and Batter Whisks are not warranted against breaking or bending because the Bosch motor is strong enough to easily bend them in heavier materials.
Cookie Paddles, pair:Click for product.
Cookie Paddles: Bosch recommends using the wire whips and batter whisks (which are shown above) for pourable batters. Heavier cookie batters can be mixed with your Universal dough hook, but now you have the ideal option: The cookie paddles for the Bosch Universal mixer, manufactured by the U.S. Bosch importer! These snap onto the metal whip drive piece—that's the oval-cone shaped part that fits down onto the top of the bowl's center shaft, which has two axle pins that point downward into the bowl. The cookie paddles are warranted against defect by the manufacturer for 1 year. This is a very useful accessory, highly recommended! (NOTE: If you have the newer "Universal Plus" model of mixer with the white colored whip drive, you will need to purchase the set of paddles that's packaged with a metal drive to use them on. You can see that packagehere.)
"Quantity 1" for this item means one pair of paddles, and does not include the metal whip drive they attach to.
Cake Paddles, Pair:Click for product.
These new cake paddles attach to the metal whip drive of the Bosch Universal Plus (or older style Bosch Classic) mixer, for use when making cake and quick bread batter as well as other pourable batters and frosting. They let you make better cake because they avoid incorporating too much air into the batter.
If your Bosch mixer has a metal whip drive, these cake paddles will snap right onto it. If you have an older mixer with a plastic whip drive, you will need to instead order the cake paddles together with a metal whip drive, directly below.
Cake Paddles with Metal Whip Drive:Click for product.
These are the same cake paddles as shown above, but with the metal whip drive included. If you have an older mixer with a plastic whip drive, you will need to order the cake paddles together with a metal whip drive.
Univ. Protective Cover:Click for product.
This fits on the Universal mixer base (not onto the blender) to cover the blender drive or the bowl drive when one or the other is not in use.
Knob for Universal Classic Mixer: (Discontinued by Bosch)
This is the knob for the Universal mixer. It does NOT include the electric switch inside the mixer.
Slicer Shredder Attachment
The TS5 Slicer Shredder has been discontinued by Bosch, but some parts are still available.
for parts for the TS5 Universal Slicer-Shredder attachment.Universal Mixer Food Processor Attachment Parts

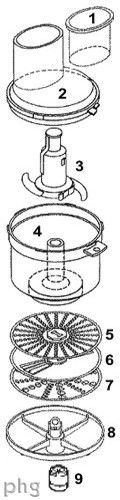

Above: Parts for the Food Processor attachment for Bosch Universal mixer
Above: The Food Processor base with handle is not sold separately
- Pusher for Bosch Food Proc. Attach:Click for product.
- Cover for Bosch Food Proc. Attach:Click for product.
- Blade for Bosch Food Proc. Attach:Click for product.
- Bowl for Bosch Food Proc. Attach:Click for product.
- Grating Disk for Bosch Food Proc:Click for product.
- Slicing Disk for Bosch Food Proc:Click for product.
- Reversible Grating Disk for Bosch Food Proc. Attach:Click for product.
- Disk Holder for Bosch FP Attach:Click for product.
- Univ. Blender/Proc. Drive Coupling:Click for product.
Note: Before ordering disks, be certain whether you have the "Food Processor" attachment or the "Slicer Shredder" attachment. The "Food Processor" has 5-cup capacity and mounts on the high-speed drive shaft of the Universal (the same place where the blender fits onto.) The "Slicer Shredder" has 12-cup capacity and mounts on the low-speed drive shaft of the Universal mixer (the same drive that the large dough-mixing bowl fits onto.)Disks shown here are for the "Food Processor" only.
Another distinguishing feature between the "Slicer Shredder" and the "Food Processor" is that the bottom-running blade shown above (item labeled "3") will NOT fit into the "Slicer Shredder" attachment.
If you need disks for the "Slicer Shredder" attachment,
Please exercise caution when handling these parts... the cutting edges are VERY sharp!
Notes about disks:
项目# 5、光栅盘、细粉碎。
Item #6, the Slicing Disk, is reversible for thick and thin slicing.
Item #7, the Reversible Grating Disk, is reversible for medium and coarse shredding.
Universal Mixer Blender & Blender Parts
Four notes about blender parts:
- The parts below fit only the "MX2" Style blender for the Bosch Universal mixer. Parts are no longer available for the "Early Style" blender.
- to see if you have the "Early Style" blender or the MX2 blender.
- The MX2 blender will fit any Bosch Universal mixer from the mid-1980's "UM3" model, onward.
- (Note that the newest model "Bosch Universal PLUS" mixer takes the new MX3 blender.Jump down this page a bit to see the new Universal PLUS and its blender.)
搅拌机成套(环宇al: (Discontinued by Bosch)
Note: The MX2 Universal Blender was discontinued by Bosch. Some parts for the blender are still available below. If you're looking for a complete blender for your Bosch mixer, thenew L'Equip Vacuum Blenderfits the Bosch Universal Plus, Universal Classic, and UM-3 mixers.
Blender Blade Wrench:Click for product.
The Blender Blade Wrench helps you to easily remove the blade from your Bosch Universal Plus or Classic blender, L'Equip RPM blender, or Bosch Compact blender. It's not a necessity, but it increases the torque you can apply and it's great for those with joint pain.
1. Blender Funnel (Univ. Classic/Compact/Concept):Click for product.
2. Blender Lid, Univ. or Compact (no funnel):Click for product.
3. Univ. Blender Carafe (carafe only): (Discontinued by Bosch)
4. Bldr Gaskets (qty. 2) (Metal Univ/Conc/Comp)—see note below:Click for product.
These gaskets fit Universal blenders having metal blade assembly hubs. The blade assembly hub is the cone-shaped part which the blades and blade shaft are mounted in. If your blender blade assembly hub is plastic instead, then see the gaskets listed immediately below. Note: Orders consisting of gaskets-only Note: Orders consisting of gaskets-only ship by First Class U.S. Mail for $3.99 shipping/handling.
5. Blndr Gaskets (qty. 2) for Plastic-Base Univ.—see note below:Click for product.
These gaskets fit Universal blenders having plastic blade assembly hubs. The blade assembly hub is the cone-shaped part which the blades and blade shaft are mounted in. (If your blender blade assembly hub is metal instead, then see the gaskets listed immediately above.) After installing new gasket on your blade assembly, to reinstall the blade assembly in the carafe, hold the blender carafe straight upright while looking downward through the carafe and inserting the blade assembly into the base of the carafe. This technique will help prevent the the blender from being knocked out of position during reinstallation. Note: Orders consisting of gaskets-only ship by First Class U.S. Mail for $3.99 shipping/handling.
6. Metal Blade Assy for Univ Blender (includes a gasket):Click for product.
6. Plastic Blade Assy for Univ Blender:Click for product.
7. Univ. Blender/Proc. Drive Coupling—see note below:Click for product.
This is the white plastic part on the underside of the blender. In use, it connects to the High Speed Drive on the mixer. Note: If you need a new one of these, be sure to carefully inspect your "High Speed Drive" (it's the next item listed, below)... because usually if your Blender Drive Coupling goes out, the resultant slippage also ruins the High Speed Drive.
Universal Mixer High Speed Drive
Univ. High Speed Drive:Click for product.
高速驱动:这是一块开车s the blender. It's pictured both on and off the mixer. Your old one can be pulled off with a pliers, and the new one will press onto the shaft by hand. Be sure to align the flat parts of its socket with the flat parts of the shaft, and push hard so it goes on all the way. If you need a new one of these, be sure to inspect your "Blender Drive Coupling" (it's the item listed just above)... because the most common cause of failure of the High Speed Drive is deterioration of the Blender Drive Coupling. You'll ruin your new High Speed Drive if you put a blender on it that has a bad Blender Drive Coupling, and Bosch doesn't warrant the HSD against abuse of that nature.
Universal Mixer Food & Meat Grinder Attachment and Parts
复合基te Food & Meat Grinder:Click for product.
Before getting into attachments and parts for the Universal Food and Meat Grinder, here's the complete attachement. The Food and Meat Grinder attachment for the Bosch mixer grinds and minces meats, vegetables, virtually any food. It comes with a 4.5 mm disk for general use and many more sizes are available to achieve any desired consistency. A stomper is included to feed meat or other foods down the chute. The Universal mixer (not included) is turned onto its rear-mounted rubber feet, as shown, to operate the grinder. The Meat Grinder attachment also fits the Bosch Universal Plus Mixer.
Universal Meat Grinder Filling Tray:Click for product.
Univ. Meat Grinder Pusher:Click for product.
Univ. Meat Grinder Short Leg:Click for product.
Since the introduction of the newer Universal Plus mixer, the meat grinder comes packaged with a support leg sized for the new Universal Plus mixer. If you have an older style mixer, the included leg will NOT work for you (it's too long) so you need to ALSO order this "shorter leg."
When you purchase the Meat Grinder attachment for the Bosch Universal mixer, a four-bladed knife is included. Additional blades are available in either four-blade or two-blade configuration. The two-bladed knife makes larger chunks than the four-bladed knife.
Univ. Meat Grinder Four-Bladed Knife: (Discontinued by Bosch)
Univ. Meat Grinder Two-Bladed Knife: (Discontinued by Bosch)
Univ. Meat Grinder Disks, 2mm-13mm:Click for products.
When you purchase the Meat Grinder attachment for the Bosch Universal mixer, it includes a 4.5 mm disk, a good size for making hamburger. (The millimeter size refers to the diameter of the holes in the disk.) The small 2 mm disk is for mincing. For large chunks, use the 8 or 13 mm disks. Available in 2mm, 3mm, 4.5mm, 6mm, 8mm and 13mm. Meat grinder disks are also referred to as meat grinder plates.
Universal Mixer Food & Meat Grinder Stainless Sausage Stuffer Set
Above: Univ. Meat Grinder Stainless Sausage Stuffer set
Univ. Meat Grinder Stainless Sausage Stuffer set: (Discontinued by Bosch.)
Three sizes of stainless steel sausage extruding tubes. These heavy duty stainless tubes are 5" long with 9/16", 7/8" and 1-1/4" tips. They fit onto the Meat Grinder attachment for the Bosch Universal Mixer, both sold separately.
Universal Mixer Food & Meat Grinder Grater Attachment
Univ. Meat Grinder Grating attachment:Click for product.
This grater for nuts, hard cheeses and spices fits onto the Meat Grinder attachment for the Bosch Universal Mixer, both sold separately.
Universal Mixer Food & Meat Grinder Pastry Press Attachment
Above: Univ. Meat Grinder Pastry Press attachment
Univ. Meat Grinder Pastry Press attachment: (Discontinued by Bosch)
The Pastry Press makes 4 different fancy shapes of shortbread cookies. Shapes included are: 22mm ridged ribbon, 15mm six-point star, 12mm six-point star, and 8mm round. It fits onto the Meat Grinder attachment for the Bosch Universal mixer, both sold separately.
Universal Mixer Food & Meat Grinder Pasta Attachment
Above: Univ. Meat Grinder Pasta attachment
Univ. Meat Grinder Pasta attachment: (Discontinued by Bosch)
These extrusion dies form eleven different shapes of pasta. This set fits onto the Meat Grinder attachment for the Bosch Universal Mixer, both sold separately. It consists of extrusion dies and an auxiliary nose piece and auger that screw onto the end of the grinder. Dies are included for wide noodles, rigatoni, spaghetti, pasta shell, small linguini, ribbon, macaroni, large linguini, spiral, rotini (twist), and lasagna. Bosch includes three recipes with the disk set, and we include two more to get you started.
Universal Mixer Food & Meat Grinder Berry Press Attachment and Parts
Above: Complete Univ. Meat Grinder Food & Berry Press
复合基te Univ. Meat Grinder Food & Berry Press attachment: (Discontinued by Bosch)
This cone style juicer is very effective for apples, pears, tomatoes, grapes, blackberries, raspberries and more. It strains skin, pulp and pits, separating the juice for wines, jellies or sauces. The juicer will separate apple juice, and also makes applesauce from cored & cooked apples. It fits onto the Meat Grinder attachment for the Bosch Universal Mixer. Meat Grinder sold separately.
Above: Food & Berry Press parts
- Cover for UFBP: (Discontinued by Bosch)
- Pressure Plate for UFBP:Click for product.
- Strainer for UFBP: (Discontinued by Bosch)
- Adjusting Screw for Bosch UFBP: (Discontinued by Bosch)
- Worm, Fruit Pulper for UFBP: (Discontinued by Bosch)
Universal Mixer Flaker Attachment Parts
Family Grain Mill knurler roller for direct fit Bosch Universal flaker attachment. Made out of hardened surgical steel.
复合基te accessories:
If you want complete accessories for your older Bosch Universal mixer (MUM6622 or MUM6610 or UM3), some are still available:
